Overview

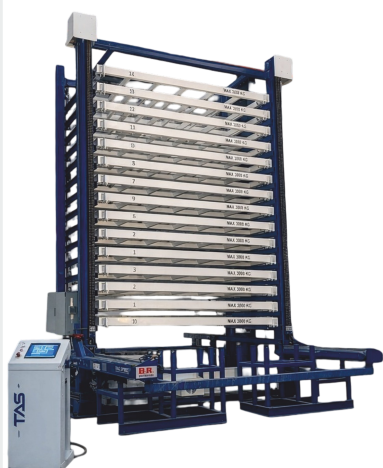

Our Sheet Metal Vertical Storage System is a fully automated solution engineered to streamline material handling for heavy flat components. Built for industrial environments, it features a precision-controlled elevator mechanism capable of depositing and retrieving drawers with high load capacities.
Features
- Floor Space Efficiency:
Reclaims up to 80-85% of floor space. maximizing operational efficiency. - Cost Reduction:
Reduces material handling costs and eliminates forklift dependency. - Workflow Speed:
Cuts material changeover time by up to 75%. - Safety:
Enhances workplace safety with ergonomic design and automated handling.
Inventory Management: Provides real-time inventory updates for superior
Technical Specifications:
- Standard Configurations:
Single Tower with front load/unload.
Single Tower with front load and back unload.
Double Tower with shuttle and front load/unload.
Inventory Management: Provides real-time inventory updates for superior stock management.
Supported Materials:
The system is fully customizable to accommodate a wide range of sheet sizes and flat materials, including:
•Sheet metal (MS, SS, Aluminium).
•Plywood and plastic sheets.
Technical Specifications:
| Sheet Size | Internal Drawer Height (mm) | Load Capacity per Drawer (KG) |
|---|---|---|
| 1260 × 2500 | 125 | 3000 |
| 1500 × 3000 | 90 | 3000 |
| 1500 × 4000 | 100 | 3000 |
| 1500 × 6300 | 110 | 5000 |
| 2000 × 4000 | 100 | 3000 |
| 2000 × 6300 | 110 | 5000 |
